When you need LPG Transport Trailer options, Alliance Truck and Tank is here to help. Standard and custom built LPG transports and NH3 transports with tank capacities up to 14,000 gallons are available.

All new LPG and anhydrous ammonia trailers are designed to ASME code, compliant with DOT spec MC331, and engineered with the highest standards for safety and performance.



10,600 Gallon LPG/NH3 Transport Trailer

  • 265 psimax working pressure
  • 2-axle air ride suspension
  • 4″ Blackmer pump hydraulically driven
  • Estimated weight 22,800 lbs

TransTrailer FOB TX

View the 10,600 Gal LPG/NH3 Transport Trailer Spec




11,600 Gallon LPG Transport Trailer

  • 250 psig max working pressure
  • Ridewell air ride suspension
  • 4″ Blackmer pump hydraulically driven
  • Marshall valves, ACME adapters

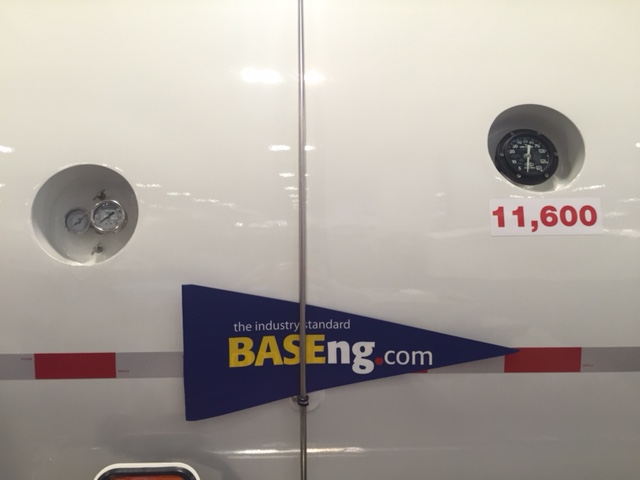

11600 rear view













View the 11,600 Gal LPG Transport Trailer Spec




12,600 Gallon Triaxle LPG Transport Trailer

  • 250 psig max working pressure
  • 3-axle air ride suspension
  • 4″ Blackmer pump hydraulically driven
  • Estimated weight 27,200 lbs

12,600 gal tri-axle

View the 12,600 Gal Triaxle LPG Transport Spec




14,000 Gallon Triaxle LPG Transport Trailer

  • 250 psig max working pressure
  • 3-axle air ride suspension
  • 47′ L x 11′ H x 102″ W
  • Estimated weight 27,500 lbs

14K Triaxle TransportView the 14,000 Gal Triaxle LPG Transport Spec




Refurbishing Services

A new unit not in this year’s budget?  No problem, we also refurbish, repair and maintain transport trailers. Services include DOT inspections, ASME equipment updates, painting, calibrations and other testing.  Let us help you revive that older unit at a fraction of the cost of a new transport.
